Project Bronco EP. 1 – Fabricating Chassis & Suspension Stands Folder 2 Automotive
FireControl [IHS/THC]
This project is ready to be cut on a CrossFire CNC Machine.
Input your own cut settings on download
to customize this file for your specific project.

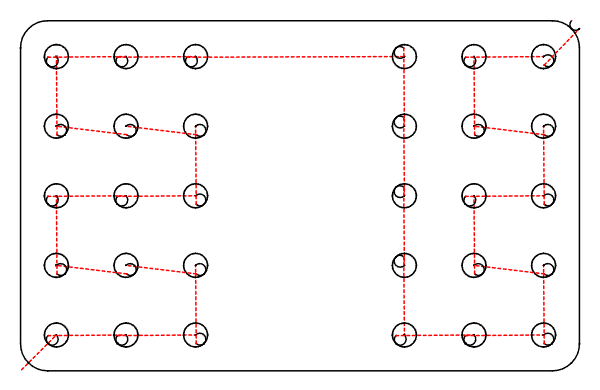

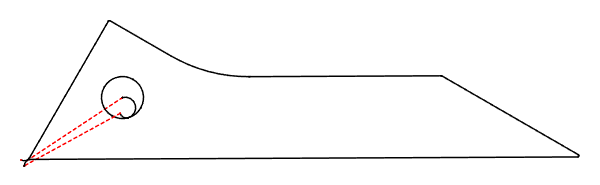

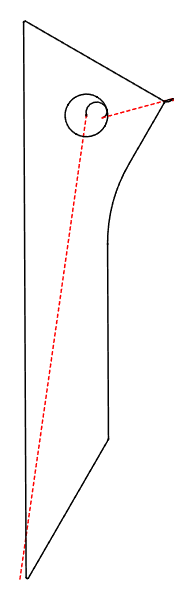

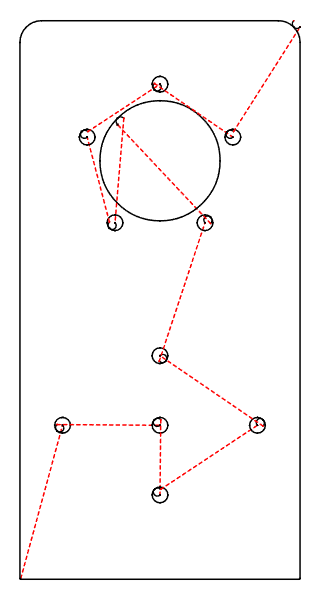

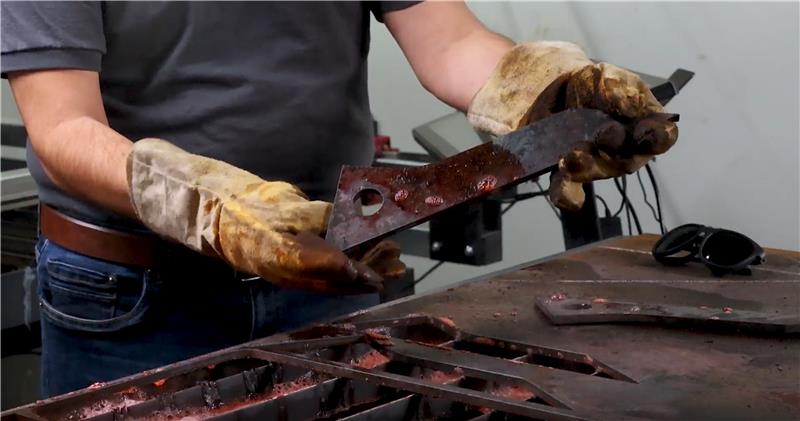

Project Bronco EP. 1 – Fabricating Chassis & Suspension Stands | Langmuir CrossFire XR Build Series DXF CUT FILES We recently picked up a 1969 Ford Bronco—Big Blue—and we're turning it into a full-on Coyote drivetrain build. This is Episode 1 of a multi-part series documenting every fabrication step using Langmuir Systems equipment. In this episode, we're designing and cutting precision chassis and suspension stands from 7/16" mild steel. These stands anchor to our ArcFlat welding tables and are engineered to hold accurate wheelbase, toe, and suspension geometry throughout the frame modernization process. The Bronco runs a 5x5.5 bolt pattern, and all geometry is designed around a 31" tire circumference.
Creative Commons - Attribution
You may distribute, remix, tweak, and build upon this work, even commercially, as long as you credit Langmuir Systems - John D for the original creation.
14 hours ago
0
Intermediate
Fabricating Chassis & Suspension Stands Bronco Project Big Blue Bronco Langmuir Build dxf tap job TAP Autodesk 360 Fusion 360
- 1Brocno Big Blue.jpg
- Bronco Big Blue Suspension.jpg
- Bronco Wheel Base Plate.tap
- Bronco Wheel Gusset opisite orientation.tap
- Bronco Wheel Gusset.tap
- Bronco Wheel Plate.tap
